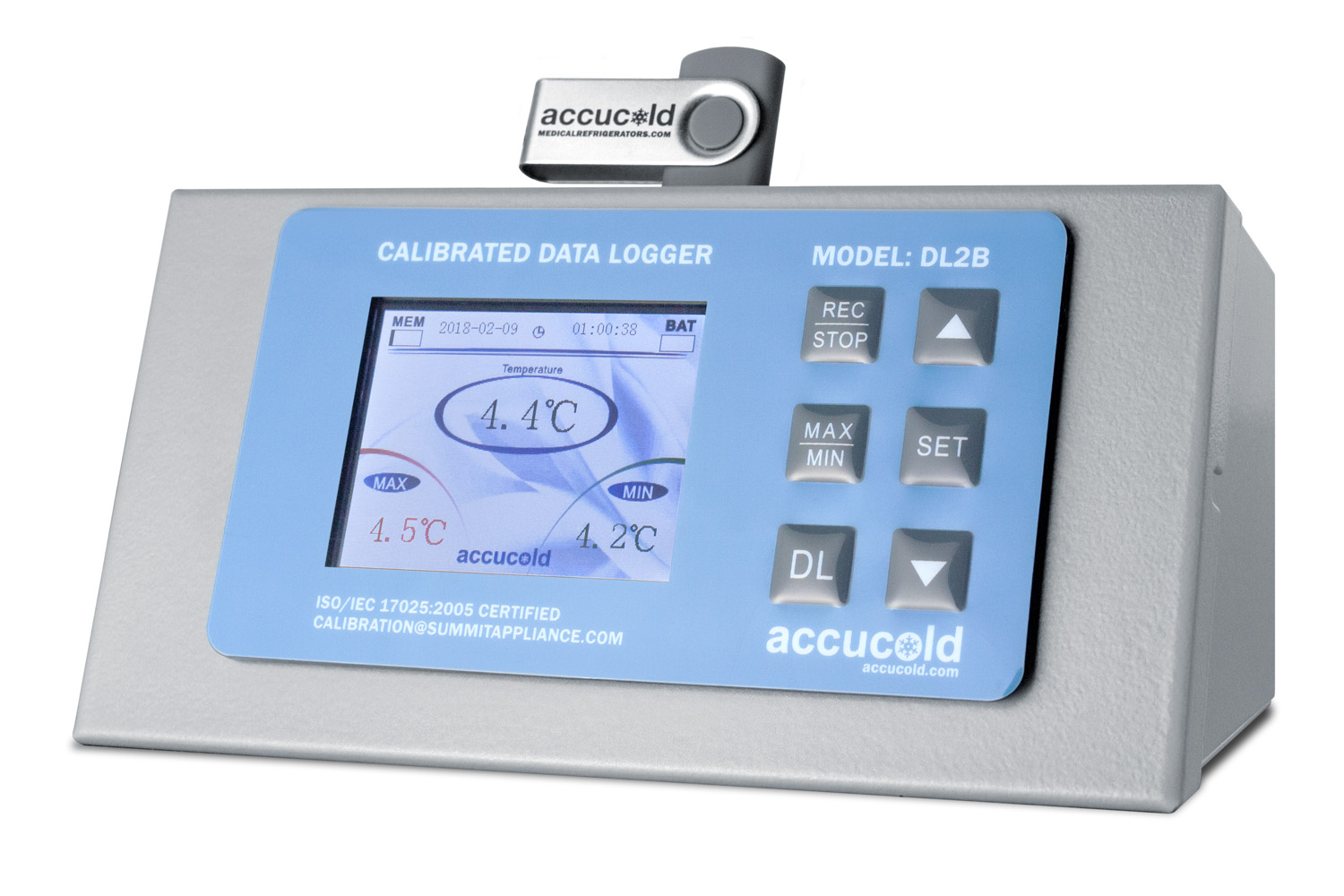

USB Digital Data Logger (DDL)
USB Digital Data Logger (DDL)
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 7.25
Height: 3.25
Depth: 3.5
Color
Features
- Simply plug the flash drive into a PC or Mac and graph or chart in Microsoft Excel or .CSV compatible program
- Audible alarm will sound and indicator light will flash if temperature rises or falls below the specified approved range
- Programmable tolerance band helps to prevent alarm chattering
- Allows you to delay alarm activation by a user-set time interval to avoid unnecessary alerts
- Screen is positioned at a slight angle for easier readability
- Logger can hold up to 32,000 data groups for long-term recordkeeping
- Screen includes a display icon for the available memory, with an audible/visual alarm alerting when the unit falls to 10%
- Users can program the timing interval for data logging, with a wide range of anywhere between 10 seconds and 240 minutes
- Accurate logging with a measurement uncertainty of ± 0.09°C
Product Description
NOTE: The DL2BKIT is for aftermarket installation. It ships in a single box with the following items included: a 4GB USB flash drive, a power adapter, a rechargeable battery, an external temperature sensor encased in a bottle filled with glycol, and a NIST certified calibration certificate. If you want this data logger installed on a Summit or Accucold refrigerator, order the DL2B option with your unit. Contact your sales representative for details and pricing on pre-installation.Accucold brings true convenience and trusted reliability to temperature logging with the DL2BKIT digital data logger (DDL). With a NIST calibrated probe and large display, this data logger offers all the features needed for accurate and convenient temperature monitoring.Designed for use with virtually any refrigerator or freezer, the DL2BKIT lets you set your own recording intervals (anywhere between 10 seconds to 240 minutes) for logging that meets your specific needs. The digital data logger can store up to 32,000 groups of data through its internal memory, or up to 4GB using the included USB flash drive. When you're ready to review the temperature data, simply plug the flash drive into your PC or Mac and transfer the data using Microsoft Excel or any .CSV compatible program. The unit is also compatible with a USB 3.0 extension cable for easy data transfer. This DDL offers accurate logging with a measurement uncertainty of ±0.09ºC, conforming to the CDC's guidelines for calibration.The LED illuminated LCD screen features a large simultaneous readout of the current, minimum, and maximum temperature to the nearest tenth of a degree, as recommended by the CDC for vaccine storage. The default readout is set to display in Celsius, but can be switched to Fahrenheit in just a few steps. A high/low temperature alarm sounds and flashes when the temperature rises above or falls below the user-set range.The DL2BKIT is powered by a 12V DC power adapter included with your unit. A rechargeable lithium
Specification
| General | |
| Nominal Height (in.) | 3.5 |
| Height of Cabinet (in.) | 3.5 |
| Height to Hinge Cap (in.) | 0 |
| Width with Door Open (in.) | 0 |
| Depth with Handle (in.) | 0 |
| Depth with door at 90° (in.) | 0 |
| Capacity | 0 |
| Bottles | 0 |
| Cabinet | Gray |
| Energy Usage/Year | 0 |
| Other Energy Info | 12VDC Power Supply |
| Amps | 0 |
| Gas Yearly Amount | 0 |
| Gas Therm Amount | 0 |
| Weight (lbs.) | 3 |
| Parts & Labor Warranty | 1 Year |
